Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter

Model NO. : BP93420D-I

POWER : 24vdc

Materials : Aluminium alloy

Transport Package : Carton

Connection : φ6 air nozzle

Trademark : HengTong

HS Code : 9026201090

Production Capacity : 20000PCS/Year

Accuracy Grade : 1.0G

IP Rating : IP65

Measuring Medium : Gas

Origin : China

Pressure range : 500PA~200kpa

Customized : Customized

Price : US $25-30 / Piece

Output : 4-20mA /0-10VDC

Specification : Aluminum shell. Plastic shell

Certification : ISO

MOQ : 5 Pieces

Contact Now

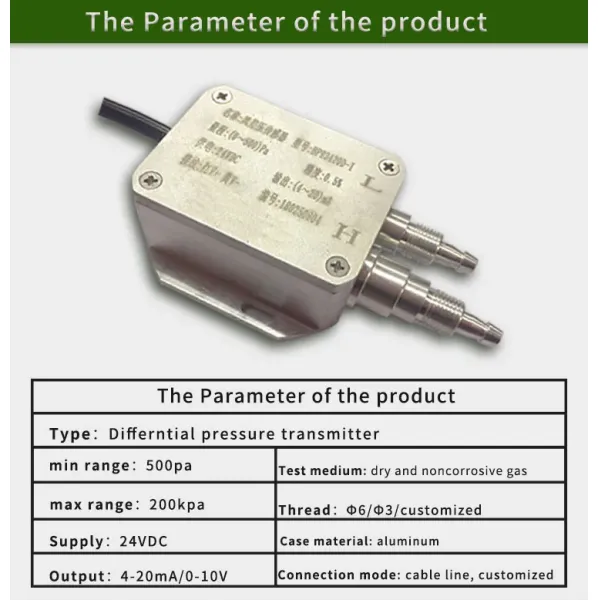

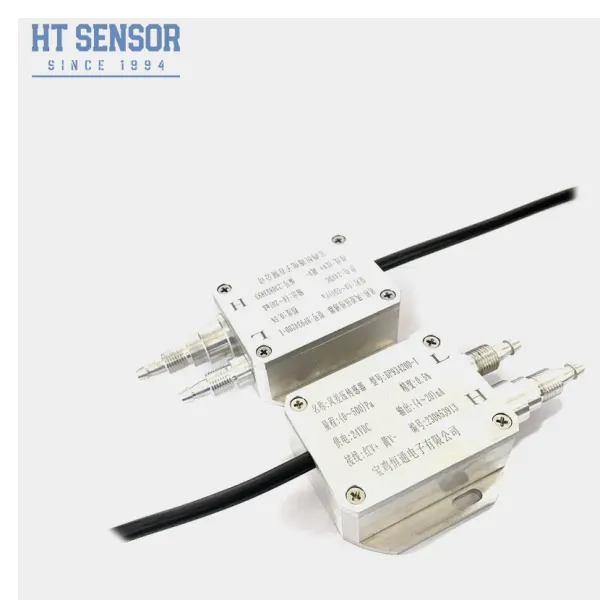

Hengtong Differential Pressure Sensor 4-20mA for Air Wind Pressure Transmitter
Introduction:
BP93420DI is a differential pressure transmitter that utilizes the piezoresistiveeffect of semiconductor silicon material to convert differential pressure into an electrical signal. It is mainly used for measuring small differential pressures of non-corrosive dry gases, suitable for applications in industries such as boiler air supply, underground ventilation in the power and mining industries, and pressure automatic detection in ultra-clean workshops for process control.

Product Features:

Choice of aluminum or plastic casing design
Lightweight and easy to install
Undergone rigorous high and low-temperature testing to ensure wide temperature range usability
High accuracy

Applications:

Suitable for applications in boiler and mining industries
Brewing and power industries
Designed for detecting small differential pressures of non-corrosive gases

Performance Parameters
Measurement Range	0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa
Pressure Type	Differential Pressure
Static pressure	2 times of the rated range
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.5% (Typical) ±1% (Maximum)
Zero Point Temperature Drift	±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum)
Full Scale Temperature Drift	±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum)
Compensation Temperature	0-50ºC
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~100ºC

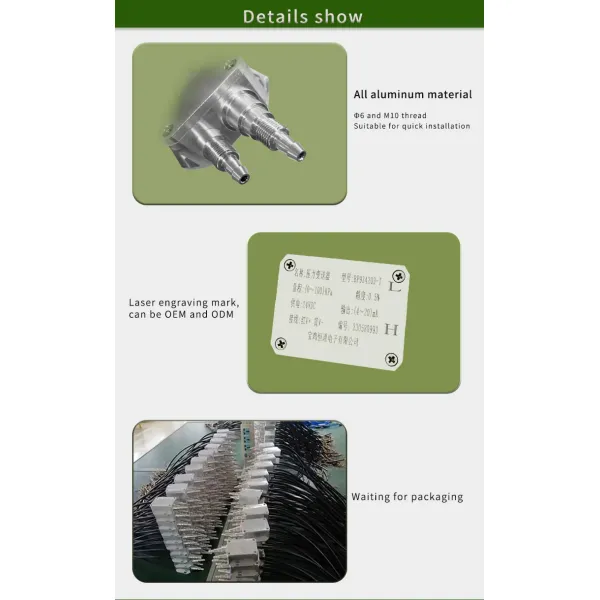

Housing Material	Aluminum alloy,Plastic
Relative humidity	0-80%
Pressure connection	φ6 air nozzle or customizable
Protection Rating	IP65
Cable material	Polyethylene
Weight	about 0.15kg
